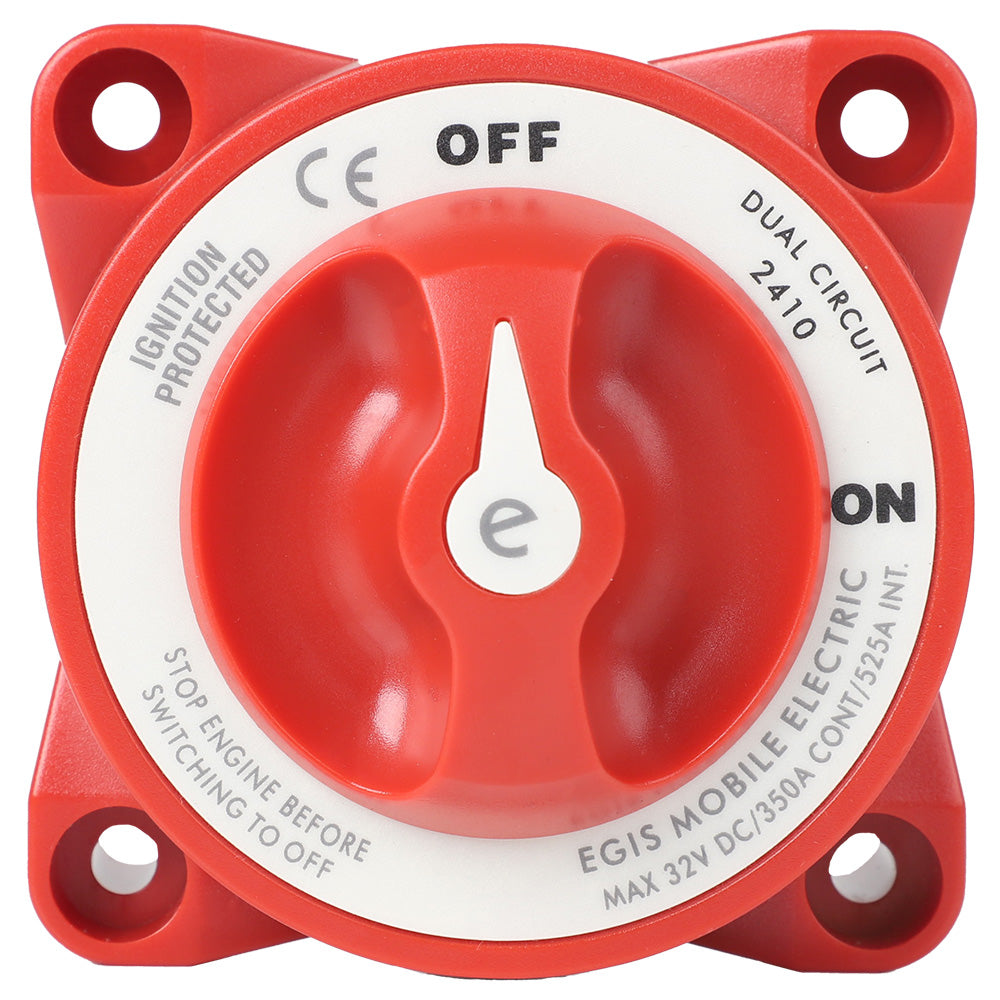

E-Series 350A Dual Circuit Battery Switch Off/On
Sealed Against Dust & Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.
Ignition Protected - Safe for installation in closed compartments with potential explosive gases.
Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.
Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.
Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.
Specifications:
- Maximum Voltage (Single Circuit): 48 Vdc
- Maximum Voltage (Selector / Dual Circuit): 32 Vdc
- Stud Size And Thread: 3/8ā-16
- Terminal Stud Torque: 140 in-lbs (15.8 N-m)
- Ring Terminal Size Acceptance: 3/8ā (M10)
- Mounting Holes: #1/4" (M6) Screw
- Live Switching Rating: 25 Amps
- Ignition Protection Rating: SAE J1171 / ISO 8846
- Bulkhead / Panel - Mounting Hole Size: 3-5/8" Diameter
- Cable Size to Meet Rating: 4/0 AWG
Manufacturer : Egis Mobile Electric
Manufacturer Part No : 2410
UPC : 850067590576
