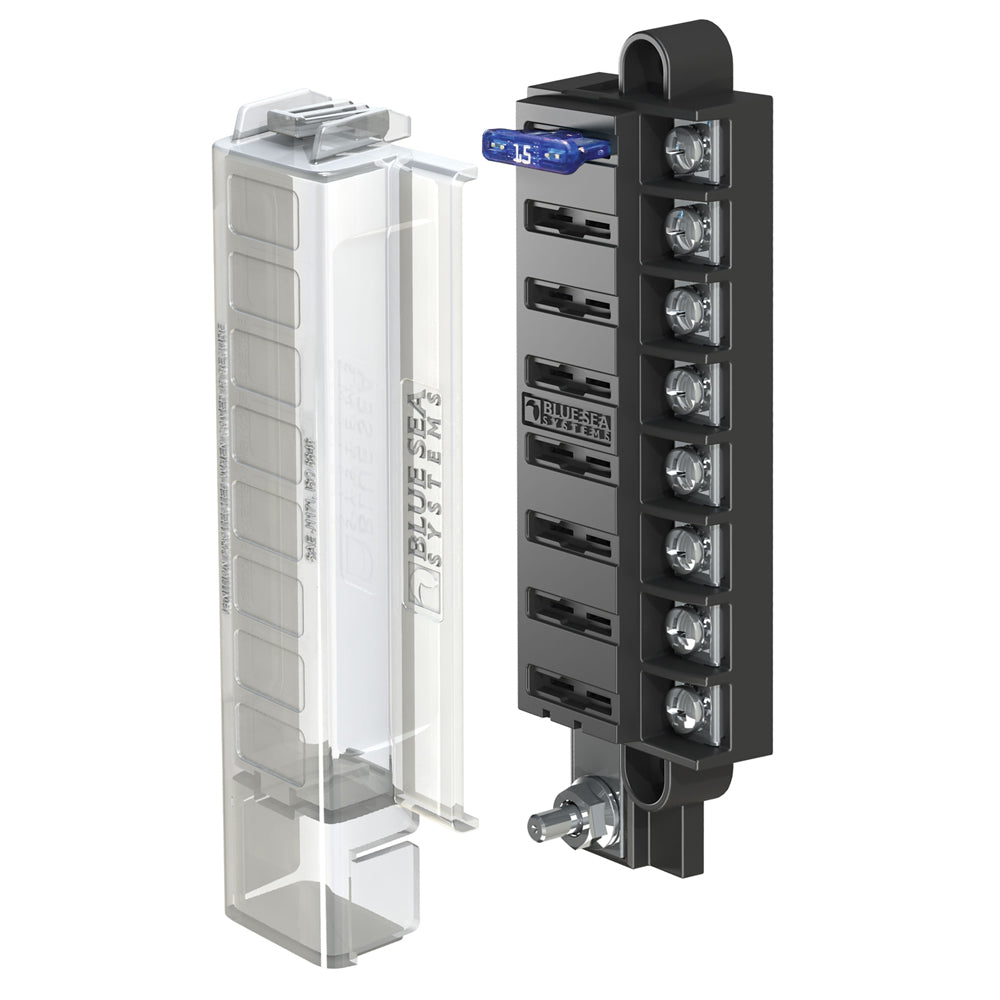

Blue Sea 5046 ST Blade Compact Fuse Blocks - 8 Circuits w/Cover

  • Sale
  • Regular price $43.33
Tax included. Shipping calculated at checkout.


ST Blade Compact Fuse Blocks - 8 Circuits w/Cover

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.
  • Compact common source fuse block
  • Accepts ATO® and ATC® fast acting blade fuses
  • Single side entry wiring
  • Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
  • Insulating cover meets ABYC/USCG insulation requirements
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Small format standard and custom labels available


Specifications
  • Circuits:8
  • Maximum Amperage: 100A per block / 30A per circuit
  • Maximum Voltage:32V DC
  • Mounting: #8 Screw (M4)
  • Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


Manufacturer : Blue Sea Systems
Manufacturer Part No : 5046
UPC : 632085050467
