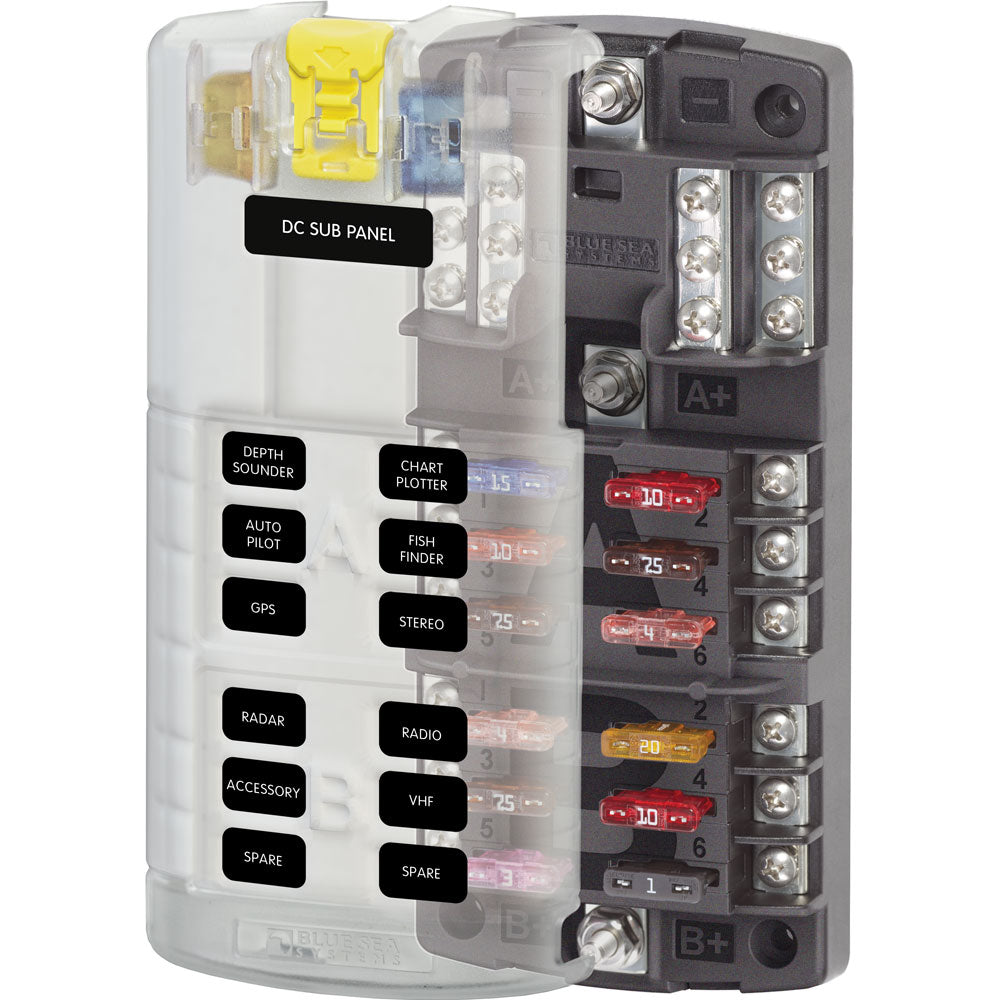

Blue Sea 5032 ST-Blade Split Bus Fuse Block

  • Sale
  • Regular price $67.96
Tax included. Shipping calculated at checkout.


ST-Blade Split Bus Fuse Block

Features:
  • Provides two isolated groups of six ATO/ATC circuits
  • For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
  • Screw terminals for securing wires accept ring terminals
  • One-piece stainless flange nuts ensure safe and secure connections
  • Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
  • Easy to open, push button latch for easy access to fuses
  • Tin-plated copper buses and fuse clips
  • Fuses sold separately

Specifications:
  • Circuits: 12
  • Maximum Amperage: 100A per block, 30A per circuit
  • Maximum Voltage: 32V DC
  • Mounting: #8 Screw (M4)
  • Negative Bus: #10-32 Stud
  • Screw Terminal Type: #8-32 Screws with captive star lock washer

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


Manufacturer : Blue Sea Systems
Manufacturer Part No : 5032
UPC : 632085050320
